Design for Manufacturability

Design for Manufacturabilty (Moldability) DFM



Where the Rubber Meets the Road



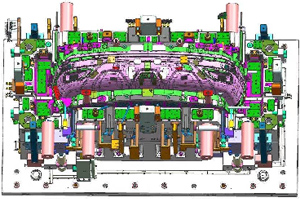

img_1168-diamondte-0963-2Design for Manufacturability/Manufacturing (DFM) is the process of effectively designing parts and products for easy and efficient production. The idea of designing a part so it is easy to produce in high volumes, utilizing existing technology, while holding tight tolerances is the heart of what we do at Diamond Tool & Engineering. We rise to the challenge of creating tooling for extremely small parts with extreme tolerances and high cosmetic value, even of optical quality. Parts with complex geometries and exotic materials adds to the complexity of creating the best possible tooling.

Raw materials, tolerances, and component assembly are all elements that can affect the manufacturability of a part. In using the DFM framework, we are able to discover potential molding problems before we even cut into the steel. Thus, allowing potential problems to be fixed in the design phase of a project, the least expensive place to address any issues  – saving our customers time and money.

img_2740-diamond-0556-editPotential problems we try to anticipate:

  • Short shots
  • Surface imperfections
  • Burned parts
  • Deformed parts
  • Flash
  • Warping
  • Excessive shrinkage
  • Voids
  • Flow issues
  • Cosmetics



Key Guidelines for Smart Design

Some key injection molding design guidelines we follow (adapted from efunda):

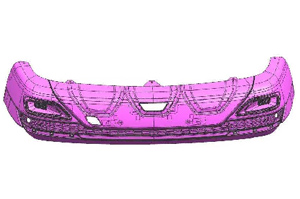

img_0336-diamondte-01311. Uniform wall thickness  – To minimize voids, shrinkage, warping, and stress. To improve mold fill and cycle times.

2. Large radius on all corners – For easier part release and reduced maintenance costs.

3. Minimize wall thickness  – To reduce cycle times, promote rapid cooling, and minimize the shot weight – saving money while avoiding problems.

4. Design parts for easy ejection – High degrees of draft (or taper) assures easy mold release. A more expensive side-action mold is required when no draft is allowed in the part.

5. Ribs and gussets for strength – To improve rigidity without the use of thick areas for a uniform wall thickness – and reduction in costs.

DFM is Business Critical

Research indicates that 70% of a product’s cost is committed at the design phase of product development. In computer science the idea of “garbage in, garbage out” refers to the fact that a computer will process whatever data is inputed. The data will be unquestionably processed and produce, often with nonsensical results.

Within the DFM stage we note all areas of concern and provide recommendations for correction. Looking at:

  • img_0435-diamondte-0230Shut Off Angle
  • Draft
  • Gating
  • Type of Material
  • Cooling
  • Wearability
  • Venting
  • Tool Material
  • Mold Finish

In manufacturing, quality in product development has progressed from ‘catching product problems and defects at the end of the production line’ to ‘anticipating and discovering problems during the design phase.’ This proactive approach results in huge savings. Design for Manufacturability minimizes production cost, improves time-to-market, and increases the quality of the product.

Contact us for a quote.
